MF 5118 4WD Tractor

PRODUCT SPECIFICATIONS Power Range (hp Range) : <20 HP range Engine : 182E15 Cylinders : 1 Cubic Capacity : 825cc (0.82L) Fuel Injection Pump : Inline Clutch Type : Single diaphragm Transmission Type : Sliding mesh Number of Speeds : 8 Forward + 2 Reverse Tyre Dimensions : Front : 5 x 12 (12.7 cm x 30.48 cm) Rear : 8 x 18 (20.32 cm x 45.72 cm) Forward Speed @ rated RPM : 21.68 kmph PTO Type : Live, Two-speed PTO PTO Speed : 540 @ 2180 ERPM and 540 RPM @ 1478 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) : 750 kgf Three-point Linkage and Controls : Draft, position and response control. Links fitted with CAT-1 N Brake Type : Multi disc oil immersed brakes Steering Type : Manual steering Electricals : 12 V 75 Ah Battery, 12 V 35 A Alternator Overall Length 2610 mm Overall Width 950 mm Overall Height : 1310 mm Wheelbase : 1420 mm Total Weight : 839 kg Fuel Tank Capacity : 28.5 L Features : Lowest track width push pedals side shift oil pipe kit digital cluster

MF 5118 2WD Tractor

PRODUCT SPECIFICATIONS Power Range (hp Range) : <20 HP range Engine : 182E15 Cylinders : 1 Cubic Capacity : 825 Fuel Injection Pump : Inline Clutch Type : Single diaphragm Transmission Type : Sliding mesh Number of Speeds : 8 Forward + 2 Reverse Tyre Dimensions : Front - 4.75 x 14 (12.06 cm x 35.56 cm) Rear - 8 x 18 (20.32 cm x 45.72 cm) Forward Speed @ rated RPM : 21.68 kmph PTO Type : Live, Two-speed PTO PTO Speed : 540 RPM @ 2180 ERPM 540 E @ 1480 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) : 750 kgf Three-point Linkage and Controls : Draft, position and response control. Links fitted with CAT-1N Brake Type : Multi disc oil immersed brakes Steering Type : Manual steering Electricals : 12 V 75 Ah Battery, 12 V 35 A Alternator Overall Length : 2595 mm Overall Width : 950 mm Overall Height : 1300 mm Wheelbase : 1436 mm Total Weight : 790 kg Fuel Tank Capacity : 28.5 L Features : Oil pipe kit side shift push pedal lowest track width

MF 30 DI Orchard Plus Tractor

PRODUCT SPECIFICATIONS Power Range (hp Range) : 17.9 kW (30 hp range) Cylinders : 2 Cubic Capacity : 1670 cc Fuel Injection Pump : Inline Clutch Type : Dual Number of Speeds : 8 Forward + 2 Reverse Tyre Dimensions : 13.97 cm x 40.64 cm (5.5x16) Front 31.49 cm x 61 cm (12.4X24) Rear Forward Speed @ rated RPM : 26.88 km/h PTO Type : Live PTO Speed : 540 RPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) : 1350 kgf Brake Type : Multi disc oil immersed brakes Steering Type Power steering Overall Length : 2672 mm Overall Width : 1420 mm Overall Height : 1600 mm Total Weight : 1520 kg Fuel Tank Capacity : 25 L Features : Chain stabilizer

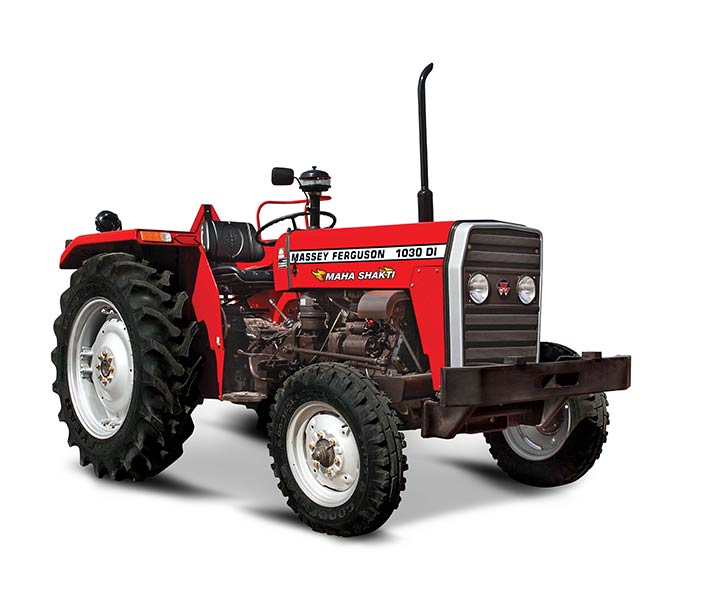

MF 1030 DI Mahashakti Tractor

Product Specifications Power Range (hp Range) 24.62 kW (35 hp Range) Engine SIMPSONS S318.1 TIII A Cylinders 3 Cubic Capacity 2270 cc (2.27L) Fuel Injection Pump Inline Clutch Type Single Clutch Transmission Type Sliding mesh Number of Speeds 8 Forward + 2 Reverse Tyre Dimensions 15.24 cm X 40.64 cm (6x16) Front 31.49 cm X 71.12 cm (12.4x28) Rear Forward Speed @ rated RPM 29.37 km/h PTO Type Single-speed PTO PTO Speed 540 RPM @ 1650 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 1300 kgf Three-point Linkage and Controls Draft, position and response control. Links fitted with CAT-1 (Combi Ball) Brake Type Dura brakes Steering Type Manual Steering Electricals 12 V 75 Ah Battery, 12 V 36 A Alternator Overall Length 3320 mm Overall Width 1675 mm Overall Height 2185 mm Wheelbase 1835 mm Total Weight 1660 kg Fuel Tank Capacity 47 L Features Front bumper

MF 1134 DI Tractor

Product Specifications Power Range (hp Range) 35 HP (25.74 kW) Engine SIMPSONS TIII A S 334 Cylinders 3 Cubic Capacity 2270 cc (2.27L) Fuel Injection Pump Inline Clutch Type Dual Transmission Type Sliding mesh Number of Speeds 8 Forward + 2 Reverse Tyre Dimensions 6.00 x 16 (15.24 cm x 40.64 cm) Front 12.4 x 28 (31.49 cm x 71.12 cm) Rear Forward Speed @ rated RPM 29.20 kmph PTO Type Live, Six-splined shaft PTO Speed 540 RPM @ 1500 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 1100 kgf Three-point Linkage and Controls Draft, position and response control. Links fitted with CAT-1 (Combi Ball) Brake Type MDSSTM technology with FRICPADTM Steering Type Manual - Recirculating worm, ball and nut type Electricals 12V 75 Ah Battery, 12 V 36 A Alternator Overall Length 3320 mm Overall Width 1675 mm Overall Height 2185 mm Wheelbase 1935 mm Total Weight 1720 kg Fuel Tank Capacity 47 L Features Front bumper, rear flat face with hitch rails and oil pipe kit, transport lock, digital cluster

MF 1035 DI DOST

Product Specifications Power Range (hp Range) 35 HP (24.6 kW) Engine SIMPSONS TIII A S 334 Cylinders 3 Cubic Capacity 2270 cc (2.27L) Fuel Injection Pump Inline Clutch Type Dual Transmission Type Sliding mesh Number of Speeds 8 Forward + 2 Reverse Tyre Dimensions 6.00x16 (0.15 x 0.41 m) front 13.6 x 28 (0.35 x 0.71 m) rear option: 12.4 x 28 (0.31 x 0.71 m) rear Forward Speed @ rated RPM 30.36 kmph PTO Type Live, Six-splined shaft PTO Speed 540 RPM @ 1500 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 1100 kgf Three-point Linkage and Controls Draft, position and response control. Links fitted with CAT-1 (Combi Ball) Brake Type MDSS Brakes / Maxx OIB Steering Type Manual - Recirculating worm, ball and nut type Electricals 12V 80 Ah Battery, 12V 36 A alternator Overall Length 3085 mm Overall Width 1720 mm Overall Height 2200 mm Wheelbase 1935 mm Total Weight 1770 kg Fuel Tank Capacity 47 L Features Front bumper, rear flat face with hitch rails and oil pipe kit, transport lock, digital cluster

MF 7235 DI Tractor

MF 1035 DI Tractor

MF 1035 DI Mahashakti Tractor

MF 1035 DI Super Plus Tractor

MF 1035 DI TONNER

MF 1035 DI Planetary Plus Tractor

MF 241 DI Planetary Plus Tractor

MF 241 R Tractor

MF 241 DI Tonner

MF 241 DI Tractor

MF 241 DI 4WD Tractor

MF 241 DI DYNATRACK Tractor

MF 244 DI PM Tractor

MF 244 DI PD Tractor

MF 244 DYNATRACK 4WD Tractor

MF 7250 DI Tractor

MF 245 DI - 46 HP Tractor

MF 245 SMART Tractor

MF 245 SMART 4WD Tractor

MF 246 DYNATRACK 4WD Tractor

MF 245 DI - 50 HP Tractor

MF 5245 DI Planetary Plus Tractor

MF 5245 DI Maha Mahaan Tractor

MF 5245 DI 4WD

MF 7250 DI PowerUp Tractor

MF 9000 Planetay Plus (Combine)

MF 9000 Planetay Plus

MF 9500 E Tractor

MF 6026 MaxPro (Narrow TracK)

MF 6026 MaxPro (Wide TracK)

MF 6028 MaxPro (Narrow Track)

MF 6028 MaxPro (Wide Track)

MF 246 DYNATRACK 2WD

MF 8055 MAGNATRAK

MF 244 DI SONA

MF 254 DYNATRACK 4WD

MF 254 DYNATRACK 2WD Tractor

254 DynaSmart 2WD Tractor

PRODUCT SPECIFICATIONS Power Range (hp Range) : 36.4 kW (50 hp range) Cylinders : 3 Cubic Capacity : 2700 cc Fuel Injection Pump : Inline Clutch Type : Dual clutch Transmission Type : Constant mesh Number of Speeds : 12 Forward + 12 Reverse Tyre Dimensions : Front - 19.05 cm x 40.64 cm (7.5 x 16) Rear - 37.85 cm x 71.12 cm (14.9 x 28) Forward Speed @ rated RPM : 35.5 km/h PTO Type : Quadra PTO PTO Speed : 540 RPM @ 1789 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) : 2050 kgf Brake Type : Oil immersed brakes Steering Type : Power steering Overall Length : 3642 mm Overall Width : 1784 mm Wheelbase : 1935 / 2035 mm Total Weight : 2150 kg Fuel Tank Capacity : 58 litres Features : Stylish bonnet SuperShuttle™ extended wheel base push type pedals adjustable seat spool valve adjustable hitch telescopic stabilizer rear wheel weight 32 kg (each side) mobile charger mobile holder water bottle holder transport lock valve and SMART key

254 DynaSmart 4WD Tractor

PRODUCT SPECIFICATIONS Power Range (hp Range) : 36.4 kW (50 hp range) Cylinders : 3 Cubic Capacity : 2700 cc Fuel Injection Pump : Inline Clutch Type : Dual clutch Transmission Type : Constant mesh Number of Speeds : 12 Forward + 12 Reverse Tyre Dimensions : FrONT - 20.32 cm x 45.72 cm (8 x 18) Rear - 37.85 cm x 71.12 cm (14.9 x 28) Forward Speed @ rated RPM : 35.5 km/h PTO Type : Quadra PTO PTO Speed : 540 RPM @ 1789 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) : 2050 kgf Brake Type : Oil immersed brakes Steering Type : Power steering Overall Length : 3642 mm Overall Width : 1784 mm Wheelbase : 2040 mm Total Weight : 2220 kg Fuel Tank Capacity : 58 litres Features : Stylish bonnet SuperShuttle™ push type pedals adjustable seat, spool valve adjustable hitch telescopic stabilizer rear wheel weight 32 kg (each side) mobile charger mobile holder water bottle holder transport lock valve and SMART key

MF 5225 Compact Tractor

PRODUCT SPECIFICATIONS Power Range (hp Range) : 17.6 kW (24 hp range) Cylinders : 2 Cubic Capacity : 1290 cc Fuel Injection Pump : Inline Clutch Type : Single dry friction plate (Diaphragm) Transmission Type : Partial constant mesh Number of Speeds : 8 Forward + 2 Reverse Tyre Dimensions : Front - 13.33 cm x 35.56 cm (5.25 x14) Rear - 21.08 cm x 60.96 cm (8.3X24) Forward Speed @ rated RPM : 23.55 km/h @ 2200 ERPM PTO Type : Live, Two speed PTO PTO Speed : 540 RPM @ 2200 ERPM, 540 RPM Eco @ 1642 ERPM Hydraulics Lifting Capacity (Lower Links at Horizontal Position) : 750 kgf Brake Type : Multi disc oil immersed brakes Steering Type : Manual steering Overall Length : 2770 mm Overall Width : 1085 mm Wheelbase : 1578 mm Total Weight : 1115 kg Fuel Tank Capacity : 27.5 litres Features : Side shift clutch safety switch Multi track wheel adjustment Maxx OIB automatic depth and draft control (ADDC)

MF 7052 L Tractor

Product Specifications Power Range (hp Range) 35 kW (48 hp Range) Cylinders 4 Cubic Capacity 2190 cc (2.19L) Fuel Injection Pump PFR type Clutch Type Single diaphragm clutch Transmission Type Synchro Mesh Number of Speeds 8 Forward + 8 Reverse Tyre Dimensions 20.32 cm x 45.72 cm (8 x18) Front 34.544 cm x 71.12 cm (13.6 x 28) Rear Forward Speed @ rated RPM 26 km/h PTO Type Two Speed PTO Speed 540 rpm/ 750 rpm Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 1300 kgf Brake Type Oil immersed brakes Steering Type Power Steering Overall Length 3410 mm Overall Width 1575 mm Overall Height 1980 mm Total Weight 1780 kg Fuel Tank Capacity 50 L Features Portal Front axle | SuperShuttle with hand flick lever | Pendant type pedals | Full Platform with Deck| |Mobile charger| Water bottle holder | Fixed Draw Bar | Front opening hood |Smart key | Front towing Hook | Premium head lamp
